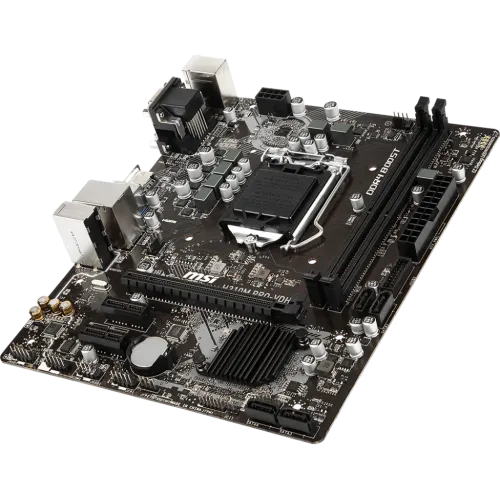

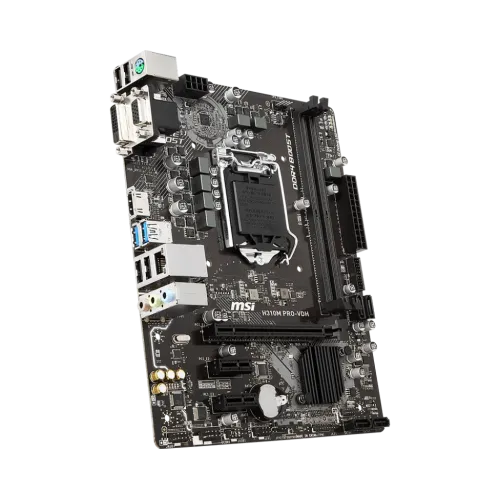

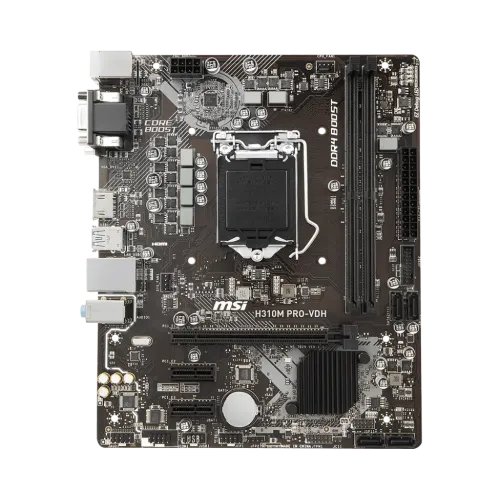

MSI H310M PRO-VDH Intel 9th Gen Motherboard

9,000

Basic Information
Supported CPU Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset Intel H310 Chipset
Form Factor m-ATX Form Factor
Expansion Slots
PCI 1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots
Memory
Type Supports Dual-Channel mode
Slots 2 x DDR4 memory slots
Supported Memory Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)
Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 32GB
Graphics
Graphics 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H

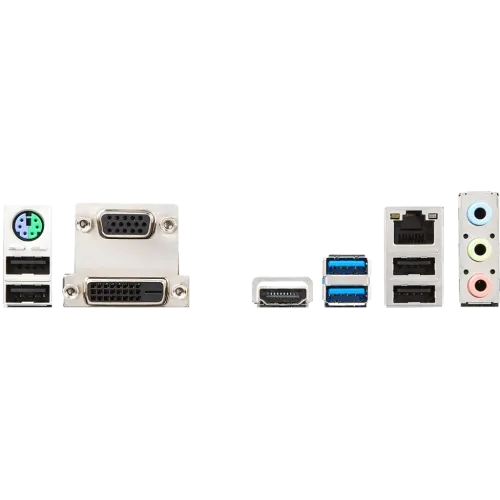

Connector & Ports
HDMI 1 x HDMI port, supports a maximum resolution of 4096×2160@30H
DVI-D (s) 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
USB (s) 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
LAN Port (s) 1 x RTL8111H Gigabit LAN controller
Supported Storage Intel H310 Chipset
4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology
Audio Realtek ALC 887/897 Codec
Warranty Information
Manufacturing Warranty 03 years

Key Features

  • Model: MSI H310M PRO-VDH
  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151
  • X-Boost & Core Boost
  • EZ Debug LED: For troubleshoot
  • Audio Boost: studio grade sound

MSI H310M PRO-VDH Intel 9th Gen Motherboard

The MSI H310M PRO VDH Intel 9th Gen Motherboard is a reliable and cost effective MSI motherboard built on the Intel H310 chipset, designed to support 9th and 8th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1151 socket, making it a solid choice for entry level and mainstream desktop systems. This compact MSI 310 motherboard features the micro ATX form factor, providing a space saving layout without compromising essential performance. It supports up to 32GB of DDR4 memory at speeds up to 2666 MHz through two DIMM slots, delivering smooth multitasking and efficient computing for everyday users. Expansion is handled with a PCIe 3.0 x16 slot for graphics cards and two PCIe 2.0 x1 slots for add on components, while four SATA III ports and offer flexible storage options. Audio needs are met with Realtek 7.1 channel HD audio, supporting HDMI, DVI D, and VGA display outputs for versatile monitor compatibility. This MSI Motherboard can function as an MSI WiFi motherboard when paired with a compatible wireless adapter, and it offers reliable wired networking via Gigabit LAN. MSI technologies such as Core Boost and Audio Boost enhance stability and sound quality, while helpful features like EZ Debug LED and Steel Armor for the PCIe slot simplify installation and provide added durability. Ideal for home PCs, office workstations, and basic gaming setups, the MSI H310M PRO VDH delivers essential performance and dependable features in a user friendly, cost effective design that suits a variety of use cases. Let me know if you want help comparing it with other boards or choosing compatible parts.
